FCD3245-01

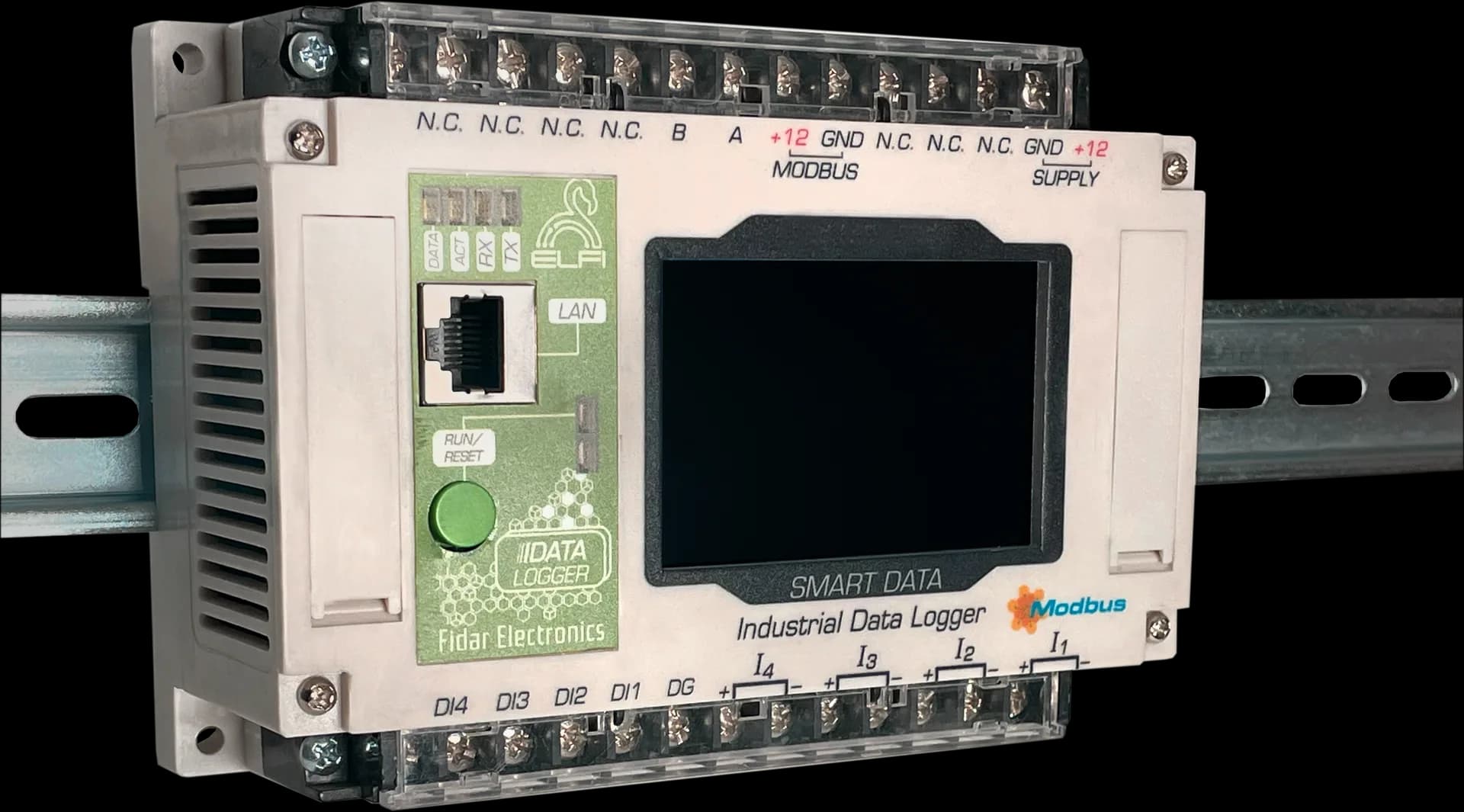

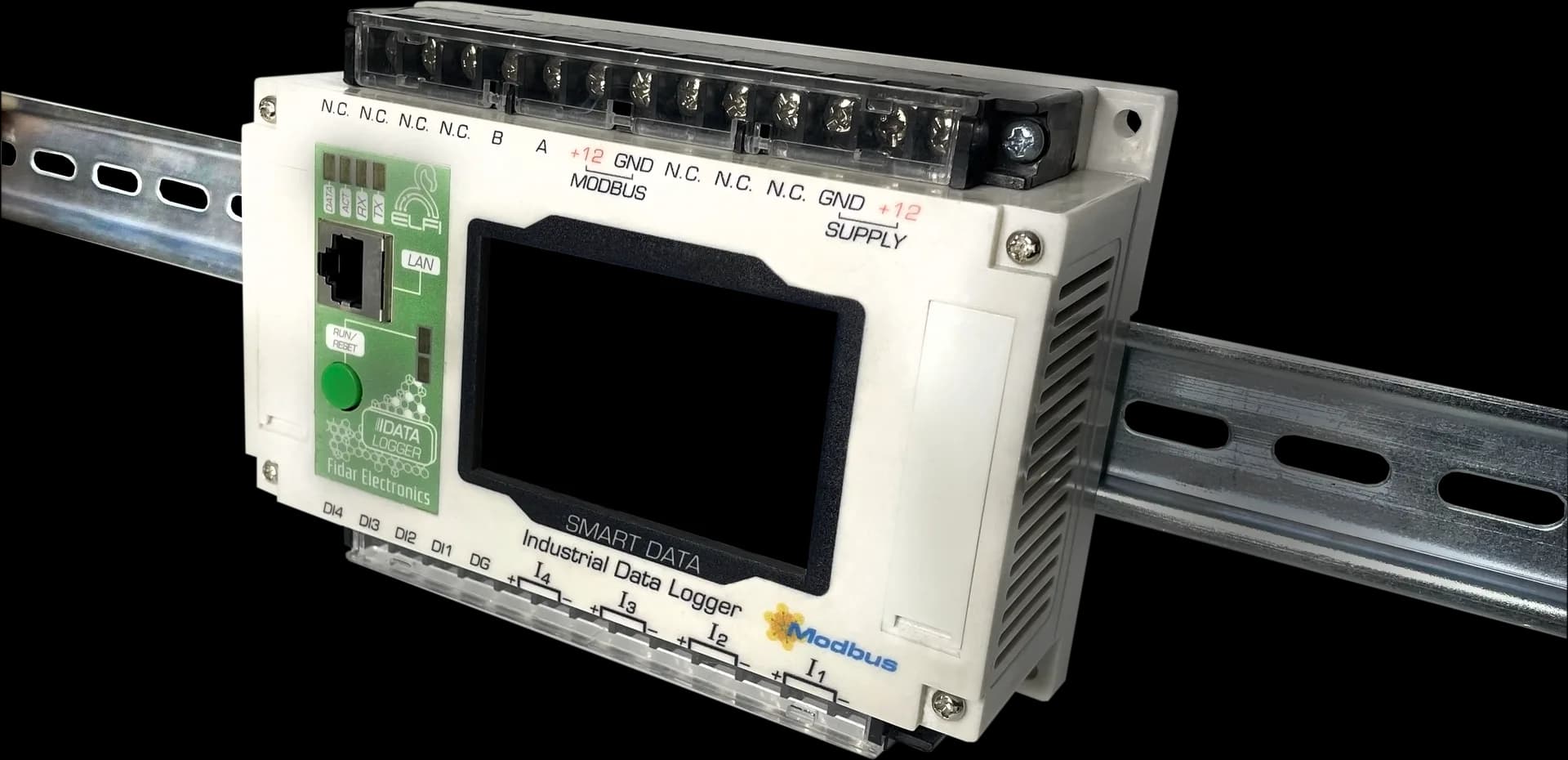

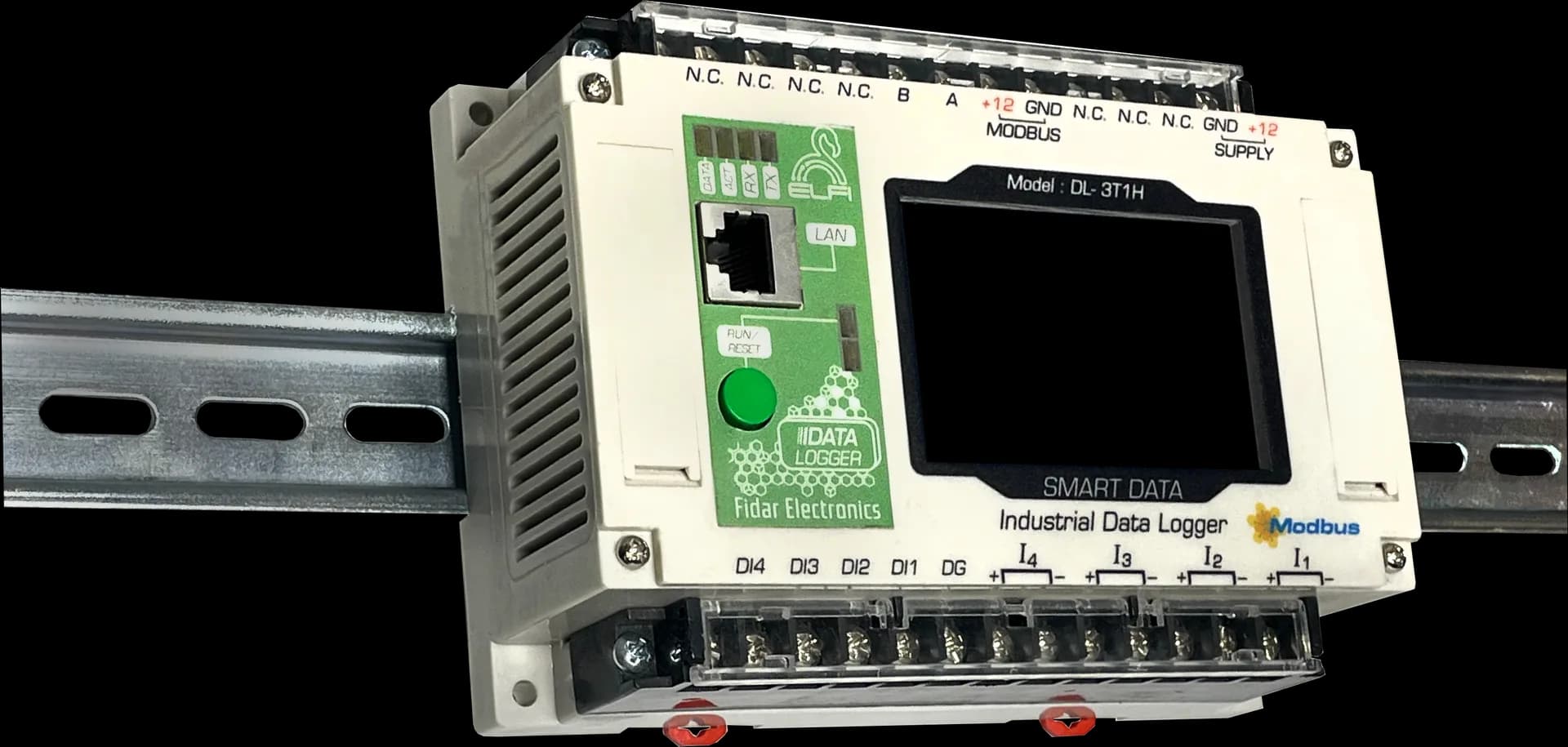

FCD3245-01 Electricity Market Data Logger
The Fidar Electronics FCD3245-01 sends power-plant site temperature and humidity to the electricity market system, with four 4–20 mA outputs for the plant DCS.
Three temperature inputs and one humidity input
Direct upload to the electricity market system
Four 4–20 mA outputs for the plant DCS
Shows upload status and the system's replies- 3.5-inch display with live input values
Industrial protocols allow long sensor cable runs
OTA updates to follow protocol changes
Programmable output relay for alarms
The FCD3245-01 is a four-channel logger — three temperature inputs and one humidity input — built to report power-plant site conditions to the electricity market system. Besides the network upload it provides four 4–20 mA outputs so the same values are recorded in the plant DCS. Its 3.5-inch display shows the inputs with their applied mapping alongside the upload status and the system's own replies, and OTA updates keep it aligned with protocol changes.
Key features
- Three temperature inputs and one humidity input
- Direct upload to the electricity market system
- Four 4–20 mA outputs for the plant DCS
- Shows upload status and the system's replies
- 3.5-inch display with live input values
- Industrial protocols allow long sensor cable runs
- OTA updates to follow protocol changes
- Programmable output relay for alarms
Where it is used
- Reporting plant site temperature to the electricity market system
- Recording temperature and humidity in the plant DCS at the same time
- Site and turbine-hall environmental monitoring
- Documenting site conditions for market reporting
- Reference temperature for available-capacity calculations
Installation
Mount it in the control room or a site panel, put the sensors on the industrial bus and wire the current outputs to a DCS input card.
