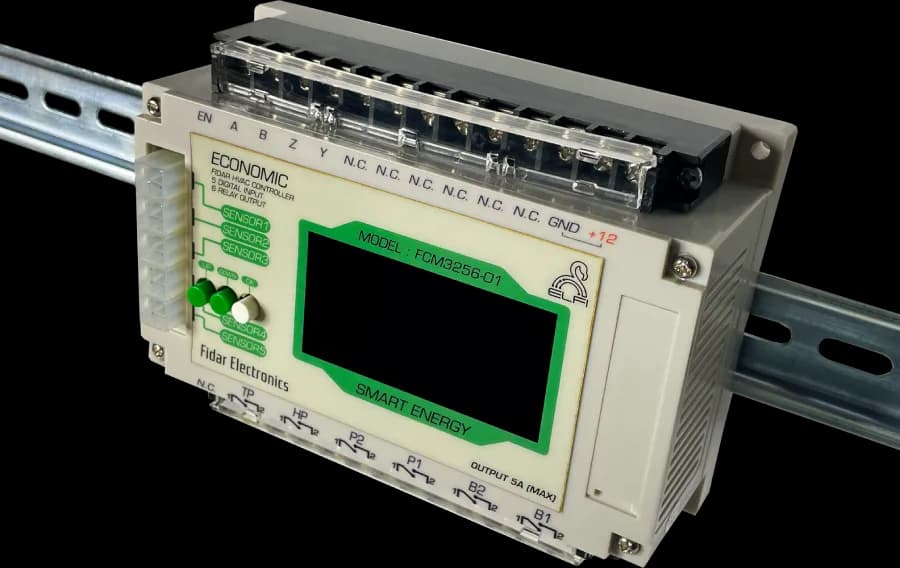

Home Page » FCM3256-01
This system is used for the smart control of central heating system equipment and while reducing energy consumption by 30-40%, it increases the lifespan of heating equipment. The user will have access to options such as the general settings of the central heating system, how it works, reporting, possible system errors, etc., both locally and remotely (Internet or internal network). The 3.2-inch display on the device shows the current temperatures, the status of the outputs, the settings of the device, including working hours, network settings, etc. By connecting the device to the Internet (via a modem), it is possible to monitor the device on the dedicated FIDARCLOUD cloud server. For this purpose, by using the FWN0260-01 modem, a reliable connection is established with the server (using both the MCI and Irancell telecommunication networks). Aggregating the data of powerhouse of a complex or organization on a single profile and defining different access levels for users in the lower and upper levels is a suitable solution to reduce the costs of fuel and electricity consumption of organizations and also to maintain a healthy environment, which is one of the main challenges of the country.
Specifications:
Product Name
|
FCH3256-01
|
---|---|
Dimensions
|
Height 15.5cm, Depth 6cm, Width 11cm
|
Weight
|
0.7 kg (without AC/DC Adapter)
|
Operating temperature
|
-10 to 45 °C
|
Storage temperature
|
-20 to 60 °C
|
Operating humidity
|
0 to 60%, non-condensing
|
Warranty
|
2 years
|
Mount
|
DIN Rail ( 4 Extra wall-mount holes)
|
FIDAQUIRE FCD6455-01
|
|
---|---|
Architecture
|
ARM®Cortex®-M3 32-bit RISC
|
CPU speed
|
72MHz
|
LCD Specifications
|
3.2 inch graphical
|
Power Supply
|
2A 12V Switching Adapter
|
FIDAQUIRE FCD6455-01
|
|
---|---|
Communication Method
|
GSM Network (SIM Card)
|
Local Access
|
3.2 inch LCD for vital information, Alarm Status, Power Status, and Sim cards status
|
Remote Access
|
Fidarcloud
|
Data Logging
|
Unlimited samples securely stored on cloud servers, 7s sampling Intervals
|
Time Management
|
NTP Client
|
FIDAQUIRE FCD6455-01
|
|
---|---|
Number of Inputs
|
5*digital temperature sensors
|
Input Types
|
compatible with FTS3070-02 FTS3070-01 series
|
Output Relay
|
6*10A 220v relays
|
Alarm Notification
|
Buzzer, SMS
|
Manual | FCD6455-01-Catalogue-Fa |
Brochure | FCD6455-01-Brochure-Fa |
