FCD6455-01
FIDAQUIRE FCD6455-01 Industrial Data Logger
The FIDAQUIRE FCD6455-01 from Fidar Electronics is a modular industrial data logger with its own web server, analogue, digital, relay, wireless and CANopen cards, and Modbus and SNMP support.
Modular chassis: 2 card slots, expandable to 5
Built-in web server and monitoring panel
Modbus/TCP and Modbus/RTU with no extra card
SNMP support for existing network monitoring
Email, SMS and programmable relay alarms
XLS, CSV, JSON and XML export over network or USB
Quad-core 64-bit ARM CPU with 4 GB DDR4
OTA updates and cloud monitoring without a static IP
The FIDAQUIRE FCD6455-01 is a modular industrial data logger that gathers readings in real time from analogue, digital, relay, LoRa wireless and CANopen input cards. The CANopen card alone handles up to 64 sensors of many different types, so one chassis can cover a whole site's instrumentation. Its own web server and monitoring panel handle dashboards, alarm thresholds and user access levels without any extra software, and data comes out over the network or from the USB port as XLS, CSV, JSON or XML.
Key features
Modular chassis: 2 card slots, expandable to 5
Built-in web server and monitoring panel
Modbus/TCP and Modbus/RTU with no extra card
SNMP support for existing network monitoring
Email, SMS and programmable relay alarms
XLS, CSV, JSON and XML export over network or USB
Quad-core 64-bit ARM CPU with 4 GB DDR4
OTA updates and cloud monitoring without a static IP
Where it is used
Telecom infrastructure, server rooms and BTS towers
Electricity distribution and sub-transmission substations
Online environmental pollution measurement systems
Weather stations and atmospheric monitoring
Clean rooms, cold stores and controlled warehouses
Consolidating production-line instrumentation into one system
Installation

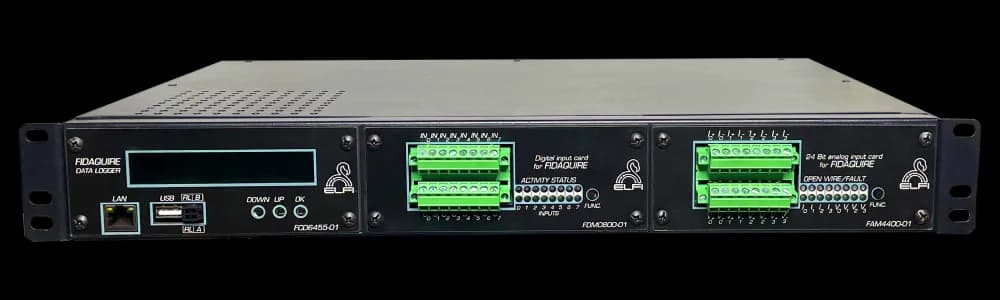

The chassis mounts in a 19-inch rack with the input cards in its front slots; it runs from 220 V AC and links over its Ethernet port.
| Dimensions | Height 1.75″ Depth 3.75″ Width 14″ (without rack-mount wings) 19″ (with rack-mount wings) |
|---|---|
| Weight | 2.0kg (without card modules) |
| Operating temperature | -10 to 45 °C |
| Storage temperature | -20 to 60 °C |
| Operating humidity | 0 to 60%, non-condensing |
| Warranty | 2 years |
| Rack Mount Size | 1.5U rackmount |
| Architecture | A72 (ARMv8-A) 64-bit |
| Total CPU cores | quad-core |
| CPU speed | 1.5GHz |
| RAM | 4GB DDR4 |
| OS | Linux |
| LCD Specifications | 2*20 industrial |
| Power Supply | 2A @ 220VAC 50/60Hz |
| Communication Method | Ethernet |
| Local Access | LCD for vital information, Alarm Status, Power Status, and Ethernet link, USB 2.0 for data export |
| Remote Access | Website and mobile app to access status |
| Data Logging | Unlimited samples securely stored on the Local and cloud servers, On-card Programmable sampling Intervals |
| API Data Interchange Formats | JSON, XML, REST, Web socket |
| Time Management | NTP Server/Client |
| SNMP Agent | V1 |
| Number of Input cards | 2 (expandable to 5 using expansion module) |
| Input Types | Based on F series cards |
| Output Relay | One 1A low voltage NO relay output (software configurable for alarms) |
| Alarm Notification | An unlimited number of email & text messages |
| Modbus | RS485 and TCP/IP |
| Ethernet port | 1 RJ-45 Ethernet port 10/100Mbit |
| USB port | V2.0 Type A |
The FIDAQUIRE FCD6455-01 is a modular industrial data logger that gathers readings in real time from analogue, digital, relay, LoRa wireless and CANopen input cards. The CANopen card alone handles up to 64 sensors of many different types, so one chassis can cover a whole site's instrumentation. Its own web server and monitoring panel handle dashboards, alarm thresholds and user access levels without any extra software, and data comes out over the network or from the USB port as XLS, CSV, JSON or XML. Typical applications: • Telecom infrastructure, server rooms and BTS towers • Electricity distribution and sub-transmission substations • Online environmental pollution measurement systems • Weather stations and atmospheric monitoring • Clean rooms, cold stores and controlled warehouses • Consolidating production-line instrumentation into one system
FCD6455-01-Usermanual-EN
v1.0 · EN · 4158 KB
