Why wireless in a greenhouse?

Because the measurement points are spread down the house, and cabling in a humid environment is both expensive to install and expensive to maintain. The wireless sensors are battery powered and pair with the gateway.

What is the wireless range?

LoRa reaches a long way in the open, but real range depends on structure, cladding and distance. Each FWL1600-01 gateway covers up to sixteen nodes; larger sites take a second gateway.

Do temperature and humidity need separate sensors?

No. One temperature and humidity sensor reads both on a single probe, so the sensor count equals the point count rather than double it.

Ready-made package

Greenhouse monitoring and control package

Ten temperature and humidity points over LoRa — no cabling down the house — with fan control and SMS alerts.

Packaged system — this exact combination is installed today

measurement points: 10
line items: 14
link: LoRa wireless

Quantities monitored: Temperature, Humidity

How it connects

10 field devices

LoRa radio

Gateway1× FWL1600-01

Central unitFCD6455-01

Relay controlPlatform SMSRemote access

What is in this package

Fidar's pick

10 devices

The central unit is the main data logger.

Central unit

1×FIDAQUIRE FCD6455-01 Industrial Data Logger
FCD6455-01
The datasheet states no device ceiling; this configuration carries 10.

Gateway

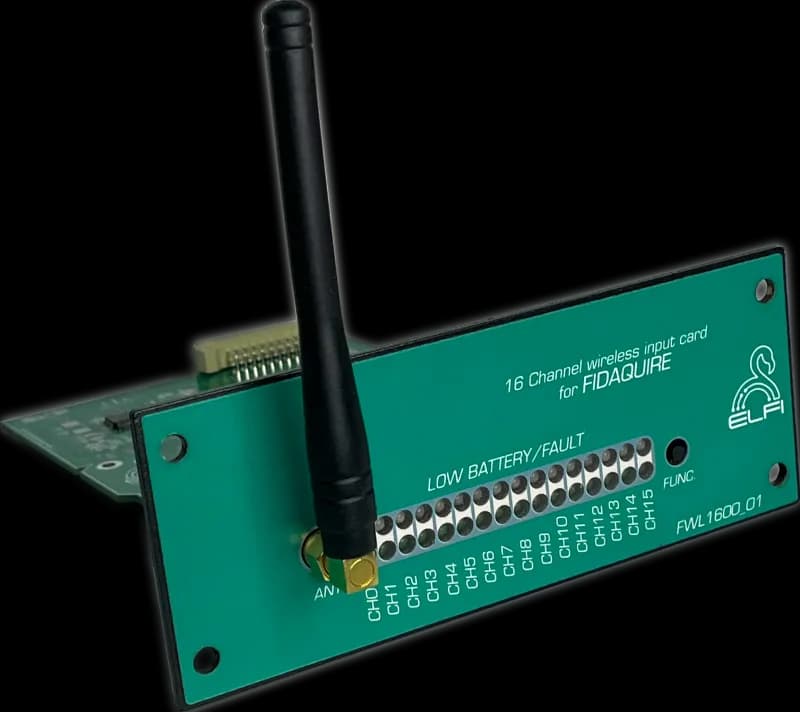

1×FWL1600-01 LoRa Wireless Card (16 Nodes)
FWL1600-01
10 wireless nodes; 16 nodes per gateway, so 1.

Sensors

10×Wireless Temperature and Humidity Sensor
FTA3070-11
10 Temperature and Humidity points; 1 channel(s) per device, so 10.

Control outputs

2×Wireless 2-Channel Relay Module
FDR0102-11
3 outputs remain; 2 × 2-channel relay module.

Notes on this configuration

Temperature and Humidity share one probe — the sensors are not counted twice.
This unit also takes 5 I/O cards at 8 channels each; if you would rather wire straight into the chassis, an engineer can quote the card-based build.
FWL1600-01 uplinks over CAN, which is what the FCD6455-01 chassis speaks.
1 of the 4 control outputs come off the unit's own relays.
This is a combination Fidar already installs as a packaged system.

Frequently asked questions

Why wireless in a greenhouse?: Because the measurement points are spread down the house, and cabling in a humid environment is both expensive to install and expensive to maintain. The wireless sensors are battery powered and pair with the gateway.
What is the wireless range?: LoRa reaches a long way in the open, but real range depends on structure, cladding and distance. Each FWL1600-01 gateway covers up to sixteen nodes; larger sites take a second gateway.
Do temperature and humidity need separate sensors?: No. One temperature and humidity sensor reads both on a single probe, so the sensor count equals the point count rather than double it.

Need a different point count?

Open this configuration in the wizard and change the points, the link or the outputs.

Open in the wizard

Request a quotation

Send us this list and an engineer will check it against your installation and price it. These products are priced per project and prices are not published on the site.

Talk to an engineer
