How many temperature sensors does a cold store need?

It depends on volume and room count. The usual rule is one point per room, plus one near the door and one at the corner furthest from the evaporator. This package is sized for eight points, which covers a mid-sized multi-room store.

What happens during a power cut?

The central unit runs on a UPS, and the power cut itself is one of the events it can alarm on. An AC voltage detector is added to the same package when the outage needs to be monitored independently.

Does this package produce audit and HACCP records?

Yes. The logger stores samples continuously and the history can be exported. The sampling interval is configurable.

Ready-made package

Cold storage temperature monitoring package

Eight temperature points in a cold store, logged continuously, with SMS alerts on excursion and remote access.

Packaged system — this exact combination is installed today

measurement points: 8
line items: 9
link: Wired CANopen

Quantities monitored: Temperature

How it connects

8 field devices

Wired CANopen

Central unitFCD6455-01

Platform SMSLoggingRemote access

What is in this package

Fidar's pick

8 devices

The central unit is the main data logger.

Central unit

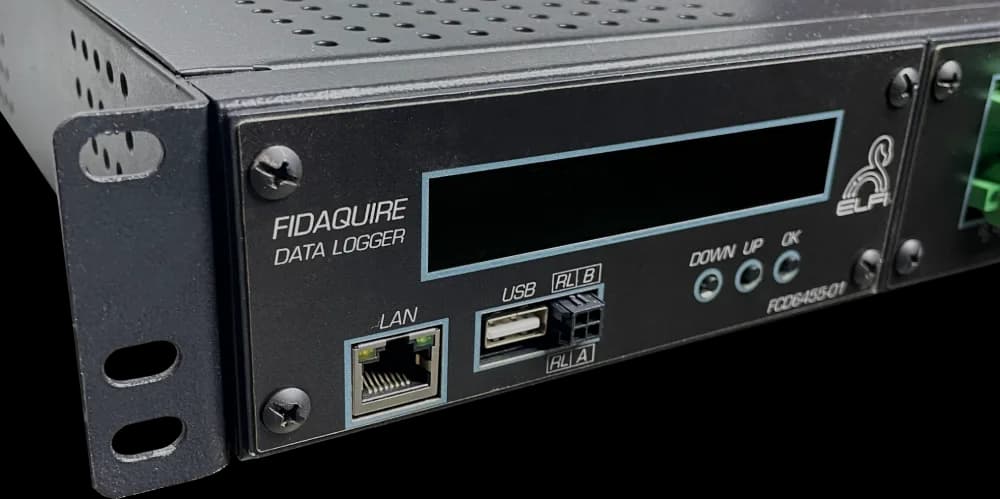

1×FIDAQUIRE FCD6455-01 Industrial Data Logger
FCD6455-01
The datasheet states no device ceiling; this configuration carries 8.

Sensors

8×Temperature and Humidity Sensor
FTA3070-01
8 Temperature points; 1 channel(s) per device, so 8.

Notes on this configuration

This unit also takes 5 I/O cards at 8 channels each; if you would rather wire straight into the chassis, an engineer can quote the card-based build.
This is a combination Fidar already installs as a packaged system.

Frequently asked questions

How many temperature sensors does a cold store need?: It depends on volume and room count. The usual rule is one point per room, plus one near the door and one at the corner furthest from the evaporator. This package is sized for eight points, which covers a mid-sized multi-room store.
What happens during a power cut?: The central unit runs on a UPS, and the power cut itself is one of the events it can alarm on. An AC voltage detector is added to the same package when the outage needs to be monitored independently.
Does this package produce audit and HACCP records?: Yes. The logger stores samples continuously and the history can be exported. The sampling interval is configurable.

Need a different point count?

Open this configuration in the wizard and change the points, the link or the outputs.

Open in the wizard

Request a quotation

Send us this list and an engineer will check it against your installation and price it. These products are priced per project and prices are not published on the site.

Talk to an engineer
