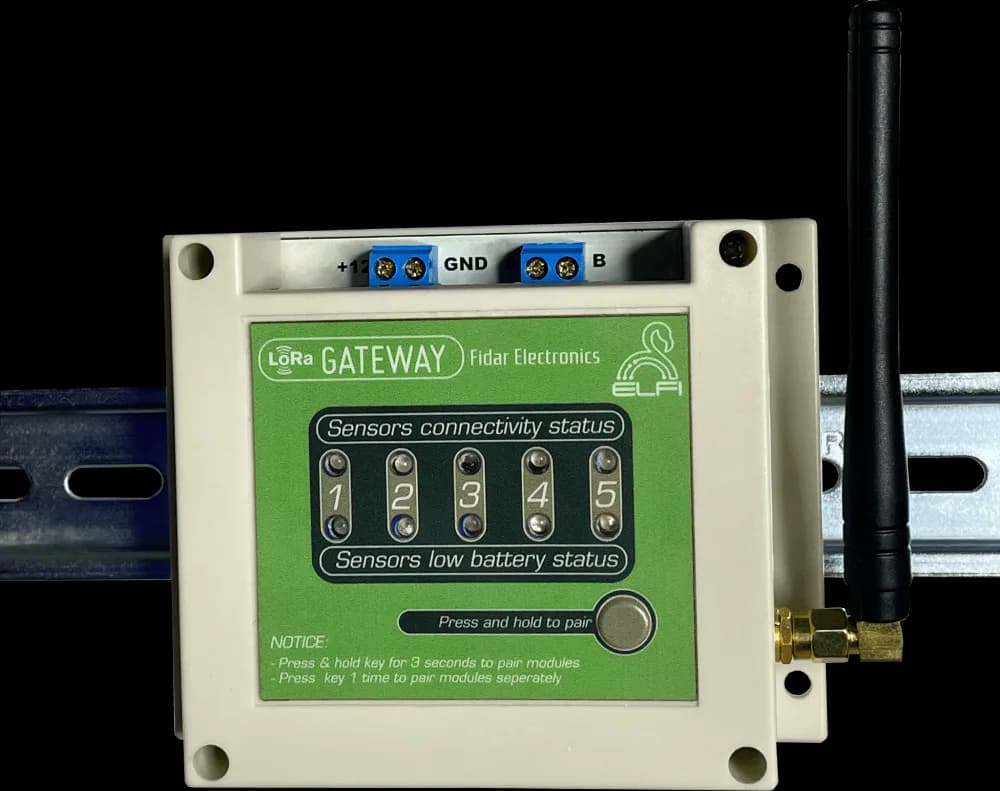

LORA wireless communication module
FWL0501-01
- Real-time recording of wireless data on the controller
- Ability to communicate with 5 sensors
- Simple pair ability
- Encoding data using AES-128 method
- Error display and battery warning of each channel separately
- Can be connected to the FCH series controller
Features
Technical Specifications
Features
LoRa is a long-range, low-power wireless communication system that can transmit small amounts of data over long distances. These two features make it an attractive solution for use in IoT and IIoT industries. The FWL0501-01 series gateway with the possibility of wireless communication through the Lora protocol has the ability to receive temperature data from the FWL0502-01 and FWL0502-02 sensors at very long distances and enables the connection of the sensors without the need for any wiring. The data is received encoded using the AES-128 algorithm and this prevents any data leakage. Also, this card has the ability to display the error signal or low battery received from each card separately and before the end The battery of each node announces this warning to the user.
Specifications:
- With 5 input sensors
- Automatic detection of input signal interruption
- Easy and fast pairing
- 500 meters range (outdoors)
Technical Specifications
|
Product Name
|
FWL0501-01
|
|---|---|
|
Dimensions
|
Height 8.9cm, Depth 4cm, Width 11.5cm
|
|
Weight
|
0.4 kg (without card modules)
|
|
Operating temperature
|
-10 to 45 °C
|
|
Storage temperature
|
-20 to 60 °C
|
|
Operating humidity
|
0 to 60 %, non- condensing
|
|
Mount
|
DIN Rail ( 4 Extra wall-mount holes)
|
|
Warranty
|
2 years
|
|
FIDAQUIRE FCD6455-01
|
|
|---|---|
|
Number of Input nodes
|
5 nodes
|
|
Resolution
|
Based on sensor node
|
|
Architecture
|
ARM 32-bit
|
|
Power Supply
|
0.2A 12V
|
|
FIDAQUIRE FCD6455-01
|
|
|---|---|
|
Communication Method
|
LoRa Wireless communication
|
|
Data Logging
|
1m/2m/5m/10m intervals (can be configured using DIP switches)
|
|
Features
|
Line Fault Detection, Easy Pairing Process, Low Battery Signal
|
|
API Data Interchange Formats
|
Modbus/RTU, RS-485
|
